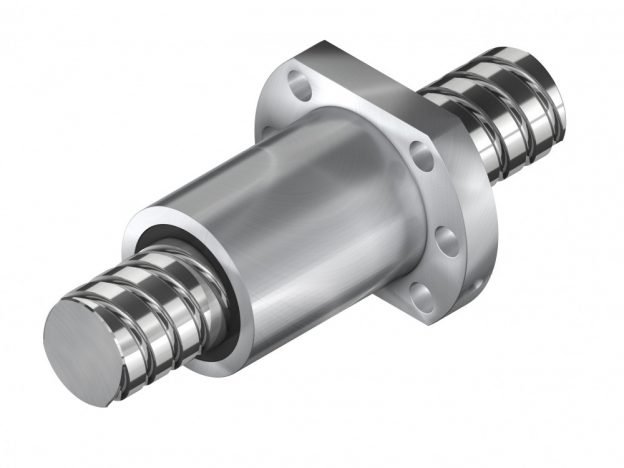

Suruburile cu bile Hiwin de tip DEB comercializate de 4 INDUSTRY au urmatoarele caracteristici:
– surubul este realizat prin aschiere decojire(strunjire)
– piulita are flansa
– joc axial max 0,02mm
– rezistenta la solicitari puternice
– clasa de precizie IT7 (52µm/300mm) sau IT5 (23µm/300mm)

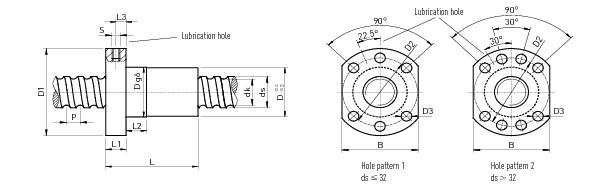

| numar articol | ds h6 |
P | D g6 |
D1 | L | B | incarcare dinamica Cdyn [N] |
incarcare statica C0 [N] |
CAD |
|---|---|---|---|---|---|---|---|---|---|
| R16-05T3-DEB | 16 | 5 | 28 | 48 | 40 | 40 | 9600 | 12700 | CAD |
| R20-05T4-DEB | 20 | 5 | 36 | 58 | 52 | 44 | 13900 | 21800 | CAD |
| R25-05T4-DEB | 25 | 5 | 40 | 62 | 52 | 48 | 15600 | 27900 | CAD |
| R25-10T3-DEB | 25 | 10 | 40 | 62 | 65 | 48 | 24100 | 36200 | CAD |
| R32-05T5-DEB | 32 | 5 | 50 | 80 | 60 | 62 | 20700 | 43900 | CAD |
| R32-10T4-DEB | 32 | 10 | 50 | 80 | 85 | 62 | 40900 | 63200 | CAD |
| R32-20T2-DEB | 32 | 20 | 50 | 80 | 80 | 62 | 20300 | 26800 | CAD |
| R40-05T5-DEB | 40 | 5 | 63 | 93 | 69 | 70 | 22500 | 54600 | CAD |
| R40-10T4-DEB | 40 | 10 | 63 | 93 | 88 | 70 | 46800 | 82600 | CAD |
| R40-20T2-DEB | 40 | 20 | 63 | 93 | 88 | 70 | 23800 | 36400 | CAD |
| R50-05T5-DEB | 50 | 5 | 75 | 110 | 69 | 85 | 24900 | 69800 | CAD |
| R50-10T4-DEB | 50 | 10 | 75 | 110 | 98 | 85 | 52800 | 106800 | CAD |
| R50-20T3-DEB | 50 | 20 | 75 | 110 | 114 | 85 | 40000 | 76200 | CAD |
| R63-10T6-DEB | 63 | 10 | 90 | 125 | 120 | 95 | 84700 | 210800 | CAD |
| R63-20T4-DEB | 63 | 20 | 95 | 135 | 150 | 100 | 105000 | 250000 | CAD |
| R63-20T5-DEB | 63 | 20 | 95 | 135 | 175 | 100 | 125000 | 300000 | CAD |
| R63-20K6-DEBH | 63 | 20 | 125 | 165 | 170 | 130 | 245700 | 783300 | CAD |
| R80-10T6-DEB | 80 | 10 | 105 | 145 | 120 | 110 | 93400 | 269200 | CAD |
| R80-20T4-DEB | 80 | 20 | 125 | 165 | 160 | 130 | 135000 | 322000 | CAD |
| R80-20T5-DEB | 80 | 20 | 125 | 165 | 175 | 130 | 161500 | 398000 | CAD |
| R80-20K6-DEBH | 78 | 20 | 135 | 175 | 170 | 140 | 280000 | 720000 | CAD |
| R80-20K7-DEBH | 78 | 20 | 135 | 175 | 190 | 140 | 320000 | 820000 | CAD |
